Availability: In stock
Free standard shipping available

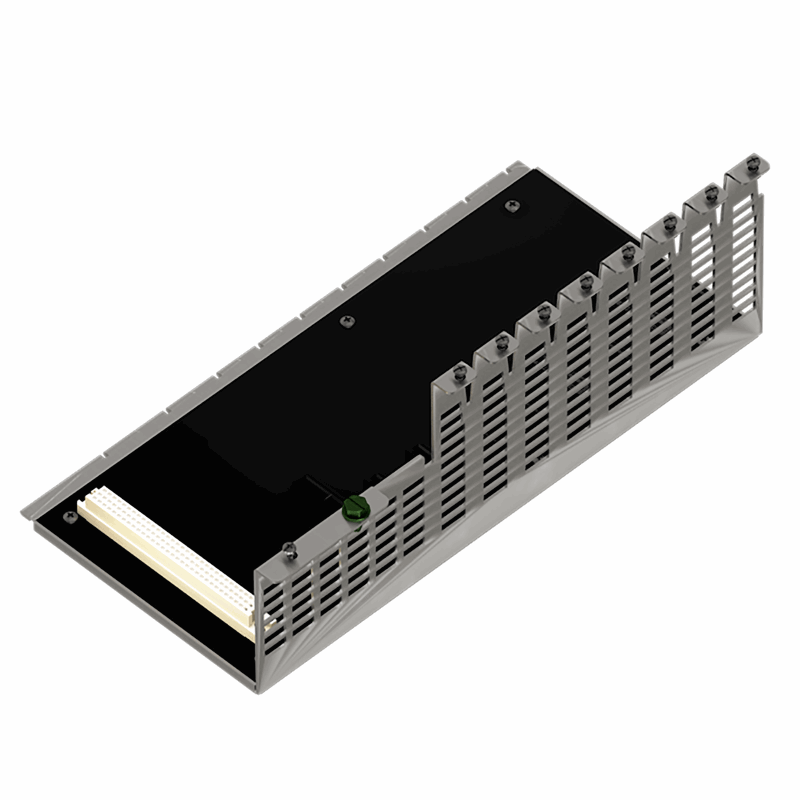

GRV-EPIC-CHS8
8-module groov EPIC chassis for I/O and processor mounting.
$289.00 ex. GST
The GRV-EPIC-CHS8 is an 8-position I/O chassis for the groov EPIC® system, supporting one GRV-EPIC-PR1 or PR2 processor and up to 7 I/O modules. Features passive cooling, integrated power distribution, DIN-rail or panel mounting. Built in the USA and backed by a lifetime guarantee.
Specifications
- Slots: 8 total (1 processor + 7 I/O modules)
- Compatible Processors: GRV-EPIC-PR1, GRV-EPIC-PR2
- Mounting: DIN-rail or panel mount
- Cooling: Passive (fanless design)
- Power Distribution: Integrated across all modules
- Operating Temperature: -20 to 70 °C
- Dimensions (HxWxD): 119.4 mm x 261.0 mm x 75.7 mm
- Weight: Approx. 0.8 kg
- Certifications: UL/cUL, ATEX, CE, UKCA compliant
- Build: Made in the USA, Guaranteed for life
- Use With: All GRV I/O modules and groov EPIC processors
