groov RIO MM2
Advanced edge I/O with ignition support and extra memory for demanding applications.
$1,145.00 ex. GST

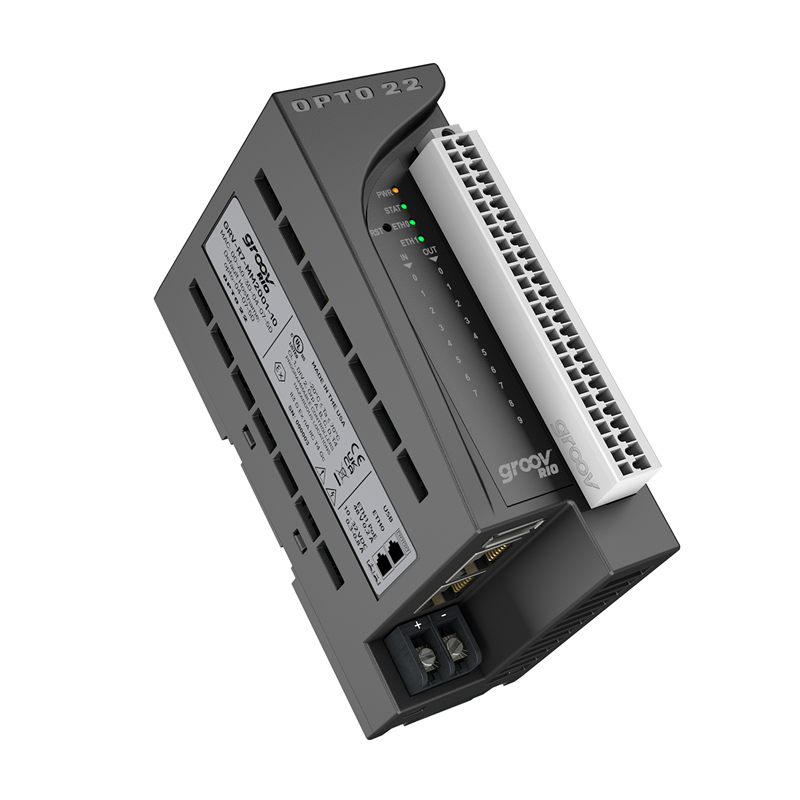

The groov RIO MM2 (GRV-R7-MM2001-10) is a powerful edge I/O module featuring 8 multi-signal, software-configurable channels, preloaded with Ignition Edge® from Inductive Automation®. It provides flexible, scalable control and data acquisition without a PLC or gateway.
Specifications
- Channels: 8 software-configurable multifunction I/O channels
- Supported Signals: Analog input/output, discrete input/output, frequency, thermocouple, RTD
- Universal Inputs: mV, V, mA, TC (J, K, T, E, N, R, S, B), RTD (2- or 3-wire)
- Discrete Inputs: Dry contact or sourcing 0–30 VDC
- Discrete Outputs: Sinking 5–30 VDC @ up to 0.75 A
- Analog Output: 0–10 VDC, 0–20 mA
- Power: 802.3af PoE or 10–32 VDC
- Networking: Dual 1 Gbps Ethernet ports, switch or separate networks
- Security: User authentication, configurable firewall, HTTPS, TLS certificates
- Data Connectivity: MQTT/Sparkplug, OPC UA, Modbus TCP, REST API, Node-RED
- Preloaded Software: Ignition Edge® (requires license)
- Software Included: groov Manage, Node-RED
- Mounting: DIN rail
- Operating Temperature: -20 to 70 °C
- Dimensions (HxWxD): 119 mm x 45 mm x 104 mm
- Weight: Approx. 0.35 kg
- Certifications: UL/cUL, ATEX, CE, UKCA
- Build: Made in the USA, Lifetime Guarantee
- Ideal For: IIoT edge control, SCADA integration, smart factory upgrades, real-time data streaming
