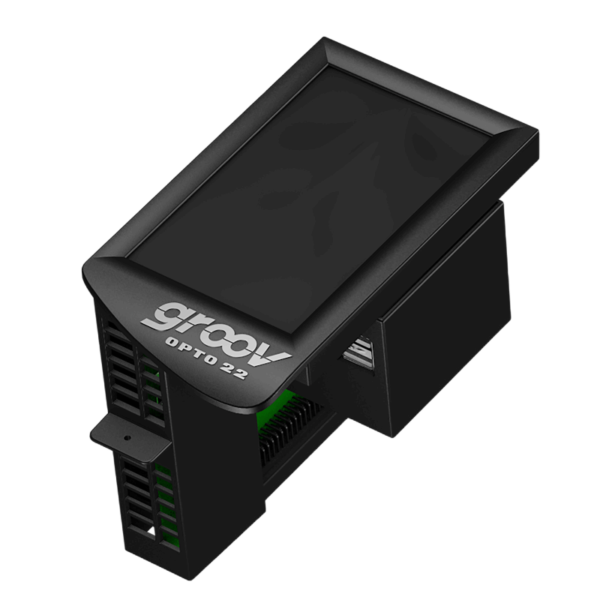

GRV-EPIC-PR1
groov EPIC Processor with touchscreen, secure Linux OS, and built-in control and IIoT tools.
$1,675.00 ex. GST
The GRV-EPIC-PR1 is a powerful industrial-grade processor for the groov EPIC® system, combining control, connectivity, data processing, and visualisation in one unit. Supports PAC Control, Node-RED, Ignition Edge®, and secure Linux shell access. Built for edge computing, it bridges OT and IT with unmatched flexibility and security.
Specifications
- Processor: ARM Cortex-A9 dual-core, 1.2 GHz
- RAM: 2 GB DDR3
- Storage: 8 GB eMMC onboard + microSD card slot
- Operating System: Secure Linux OS
- I/O Support: Connects to all groov EPIC I/O modules
- Programming Support:
- PAC Control
- CODESYS (optional)
- Node-RED
- Ignition Edge®
- Secure shell access for custom Linux apps
- Networking:
- Dual independent Ethernet interfaces (10/100/1000 Mbps)
- 1x USB 2.0
- 1x HDMI output for local HMI
- Security:
- Built-in firewall
- Role-based user access
- Secure Shell (SSH), HTTPS, VPN
- User-configurable certificates
- Operating Temperature: -20 to 70 °C
- Dimensions (HxWxD): 119.4 mm x 50.8 mm x 75.7 mm
- Weight: Approx. 0.3 kg
- Certifications: UL/cUL, ATEX, CE, UKCA
- Build: Made in the USA, factory tested, guaranteed for life
- Compatible With: All groov EPIC power supplies and chassis (CHS4, CHS8, CHS16)
