Availability: In stock
Free standard shipping available
GRV-EPIC-PR2

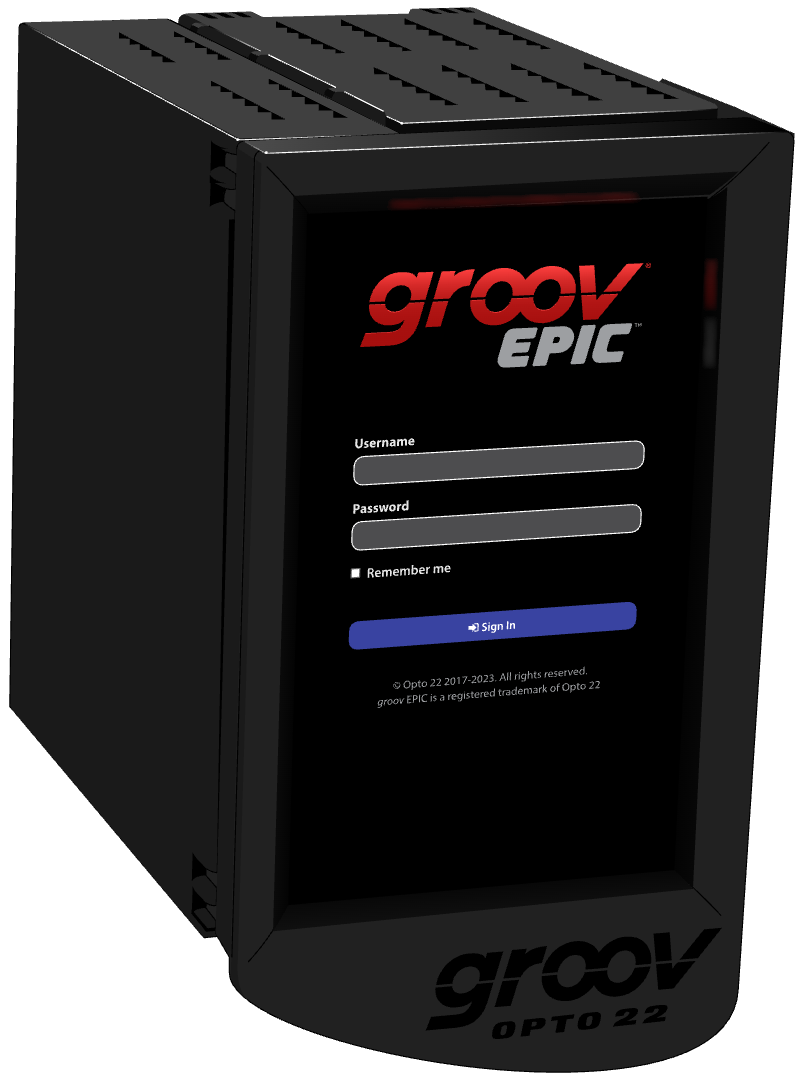

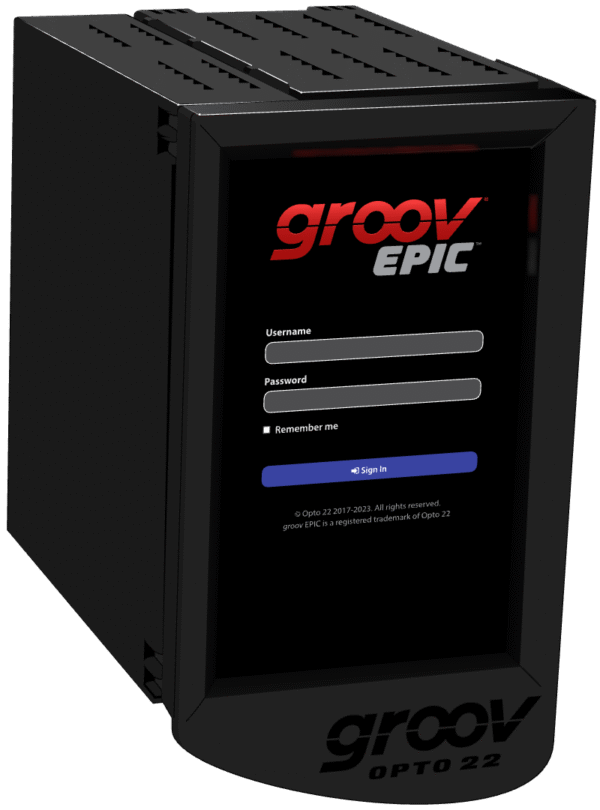

groov EPIC High-Performance Processor with faster CPU, more memory, and advanced IIoT and control capabilities.
$2,325.00 ex. GST
The GRV-EPIC-PR2 is Opto 22’s most advanced EPIC® processor, offering higher performance, increased memory, and faster networking. Ideal for demanding automation and IIoT tasks, it supports PAC Control, Ignition Edge®, Node-RED, secure shell, and dual 1 Gbps Ethernet. Built for reliability, cybersecurity, and seamless edge-to-cloud integration.
Specifications
- Processor: Quad-core ARM Cortex-A9, 1.6 GHz
- RAM: 2 GB DDR3L
- Storage: 32 GB eMMC onboard storage
- External Storage: microSD slot (supports up to 1 TB)
- Operating System: Hardened Linux OS
- I/O Support: Compatible with all groov EPIC I/O modules
- Programming Options:
- PAC Control
- Node-RED
- Ignition Edge®
- CODESYS (optional)
- Secure shell (SSH) for Linux development

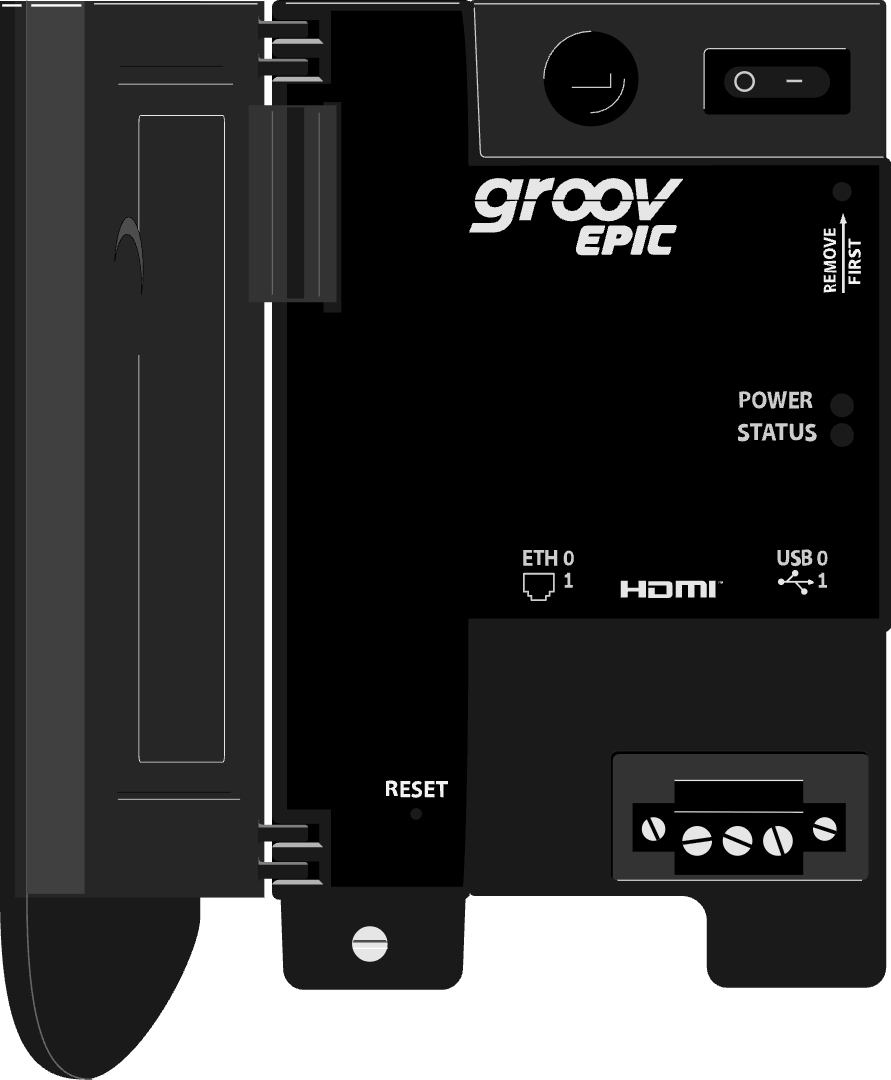

- Networking:
- Dual independent 10/100/1000 Mbps Ethernet ports
- Built-in firewall and routing
- 1x USB 3.0 port
- 1x USB 2.0 port
- 1x HDMI port for local HMI
- Security:
- Role-based access control
- Encrypted HTTPS
- VPN support
- Configurable certificates
- Secure boot and root file system
- Operating Temperature: -20 to 70 °C
- Dimensions (HxWxD): 119.4 mm x 50.8 mm x 75.7 mm
- Weight: Approx. 0.3 kg
- Certifications: UL/cUL, CE, UKCA, ATEX compliant
- Build: Made in the USA; factory tested and backed by lifetime warranty
- Chassis Compatibility: GRV-EPIC-CHS4, CHS8, CHS16
