Availability: In stock
Free standard shipping available
GRV-IACHVS-24

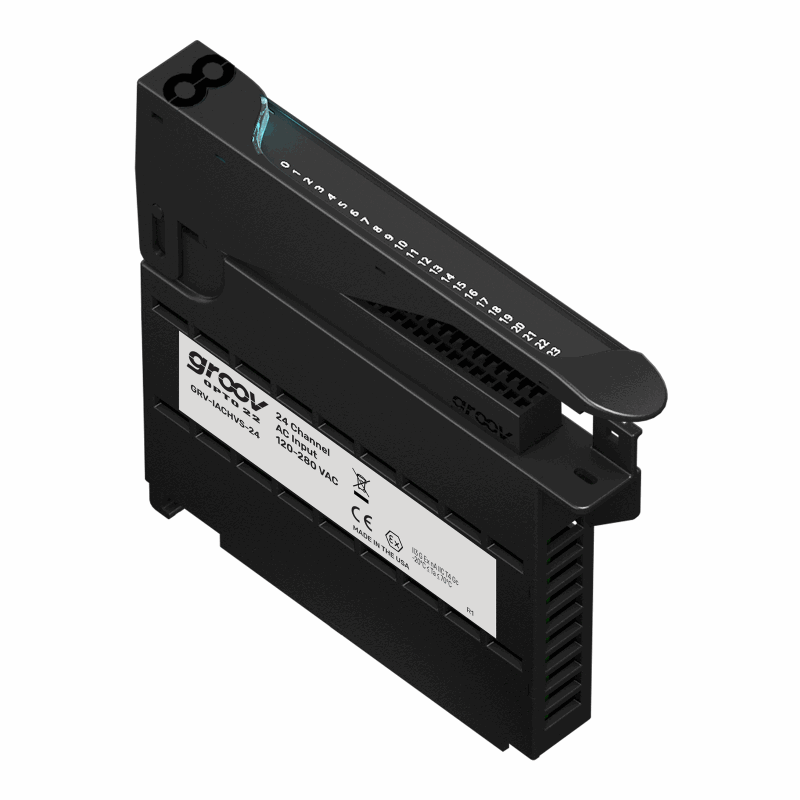

AC high-voltage digital input module, 24 channels, 180–280 VAC, on/off detection
$0.00 ex. GST
The GRV-IACHVS-24 senses 24 group-isolated input channels for detecting 180–280 VAC signals. Designed for simple on/off state detection only. Includes per-channel LEDs, module status LED, touchpad diagnostics, UL and ATEX compliance, -20 to 70 °C operation, made in the USA, and guaranteed for life.
Specifications
- Channels: 24 AC digital inputs (group-isolated, non-isolated between channels)
- Input Voltage Range: 180–280 VAC
- Input Function: On/off state detection only
- Channel-to-Logic Isolation: 3,000 V (module-level)
- Indicators:
- LED on module cover (status)
- LED per channel (input state)
- Touchpad: Displays module info on groov EPIC processor
- Operating Temperature: -20 to 70 °C
- Certifications: UL Hazardous Locations, ATEX, CE, UKCA compliant
- Build: Made in the USA, Guaranteed for life
- Compatibility: For use with groov EPIC processors (GRV-EPIC-PR1, PR2)
