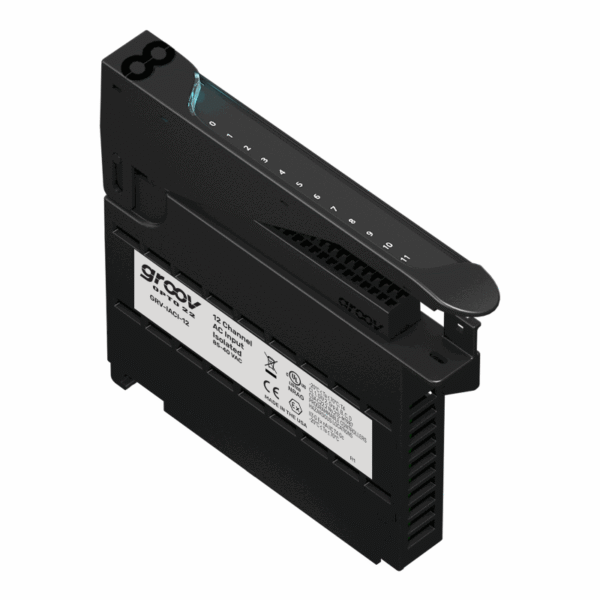

GRV-IACI-12
AC digital input module, 12 channels, 85–140 VAC, isolated
$0.00 ex. GST
The GRV-IACI-12 offers 12 channel-to-channel isolated input channels for sensing 85–140 VAC or VDC signals. Supports on/off state, latching, totalization, frequency, period, and pulse measurement. Includes per-channel LEDs, status LED, touchpad diagnostics, UL and ATEX compliance, operates -20 to 70 °C, made in the USA, and guaranteed for life.
Specifications
- Channels: 12 AC/DC digital inputs, channel-to-channel isolated
- Input Voltage Range: 85–140 VAC/VDC
- Input Functions:
- On/off state
- On/off latching
- On/off totalization
- Frequency measurement
- Period measurement
- Pulse measurement
- Channel-to-Logic Isolation: 3,000 V
- Indicators:
- LED on module cover (status)
- LED per channel (input state)
- Touchpad: Displays module info on groov EPIC processor
- Operating Temperature: -20 to 70 °C
- Certifications: UL Hazardous Locations, ATEX, CE, UKCA compliant
- Build: Made in the USA, Guaranteed for life
- Compatibility: For use with groov EPIC processors (GRV-EPIC-PR1, PR2)
