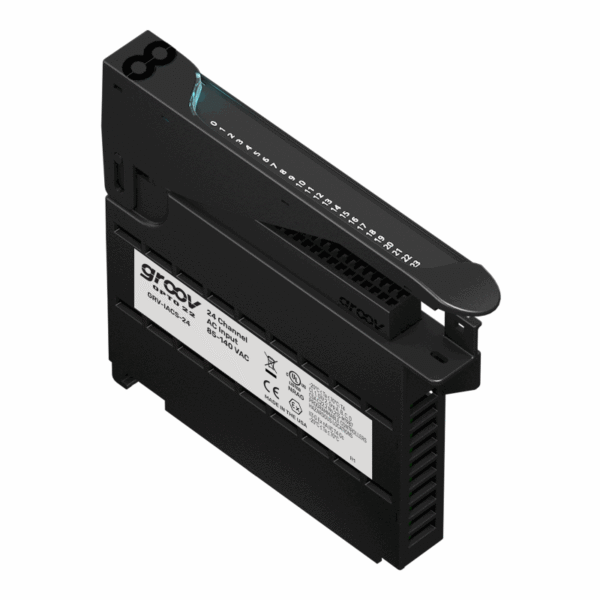

GRV-IACS-24
AC digital input module, 24 channels, 85–140 VAC, on/off detection
$0.00 ex. GST
The GRV-IACS-24 provides 24 group-isolated input channels for sensing 85–140 VAC or VDC signals. Designed for simple on/off state detection only. Includes per-channel LEDs, module status LED, touchpad diagnostics, UL and ATEX compliance, operates from -20 to 70 °C, made in the USA, and guaranteed for life.
Specifications
- Channels: 24 AC/DC digital inputs (group-isolated, non-isolated between channels)
- Input Voltage Range: 85–140 VAC/VDC
- Input Function: On/off state detection only
- Channel-to-Logic Isolation: 3,000 V (module-level)
- Indicators:
- LED on module cover (status)
- LED per channel (input state)
- Touchpad: Displays module info on groov EPIC processor
- Operating Temperature: -20 to 70 °C
- Certifications: UL Hazardous Locations, ATEX, CE, UKCA compliant
- Build: Made in the USA, Guaranteed for life
- Compatibility: For use with groov EPIC processors (GRV-EPIC-PR1, PR2)
