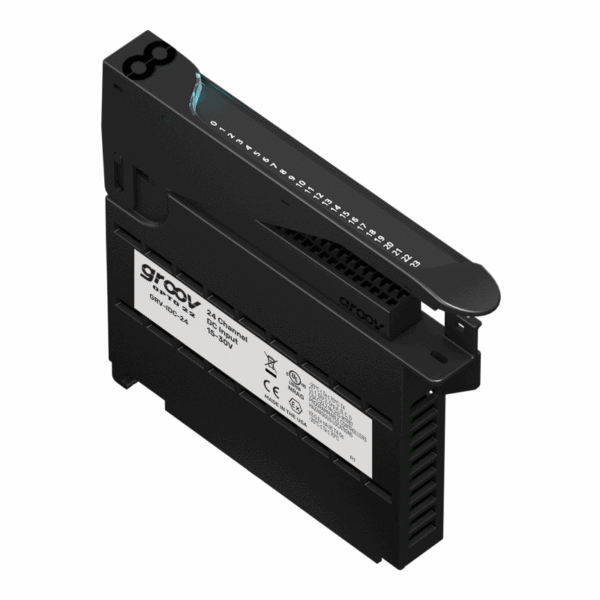

GRV-IDC-24
DC digital input module, 24 channels, 15–30 VDC
$0.00 ex. GST
The GRV-IDC-24 provides 24 digital input channels for sensing 10–30 VDC signals. Channels are non-isolated but group-isolated. Includes per-channel LEDs, status indicator, and touchpad diagnostics. UL and ATEX compliant, operates from -20 to 70 °C, made in the USA, and backed by a lifetime guarantee.
Specifications
- Channels: 24 DC digital inputs (non-isolated between channels, group-isolated)
- Input Voltage Range: 10–30 VDC
- Input Functions:
- On/off state
- On/off latching
- On/off totalization
- Frequency measurement
- Period measurement
- Pulse measurement
- Leakage Tolerant: Yes
- Channel-to-Logic Isolation: 3,000 V (module-level)
- Indicators:
- LED on module cover (status)
- LED per channel (input state)
- Touchpad: Displays module info on groov EPIC processor
- Operating Temperature: -20 to 70 °C
- Certifications: UL Hazardous Locations, ATEX, CE, UKCA compliant
- Build: Made in the USA, Guaranteed for life
- Compatibility: For use with groov EPIC processors (GRV-EPIC-PR1, PR2)
