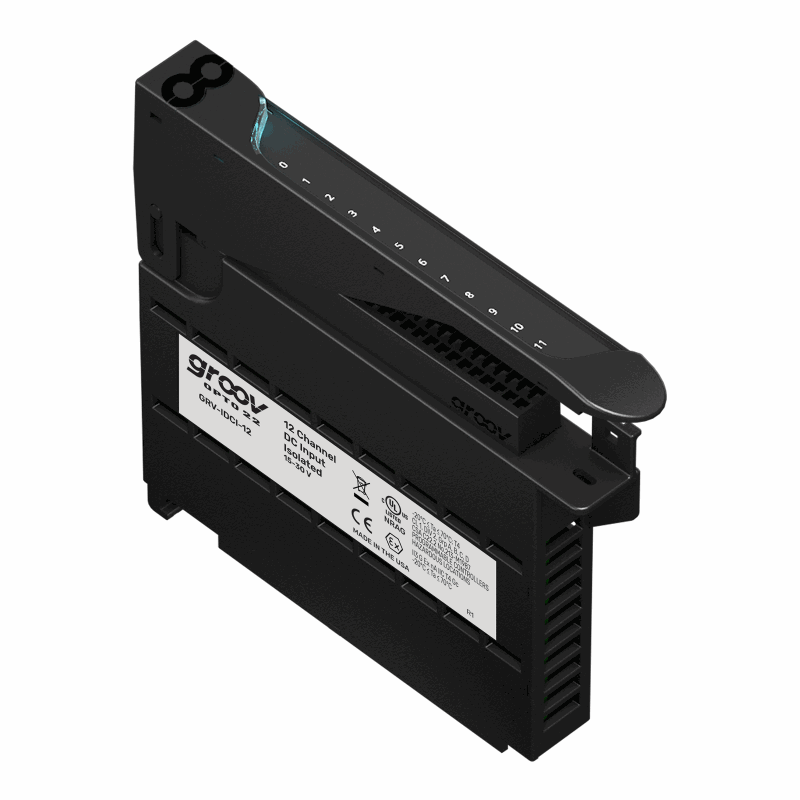

GRV-IDCI-12
Mixed AC/DC digital input module, 12 channels, 10–30 VDC or 10–25 VAC, isolated
$0.00 ex. GST
The GRV-IDCI-12 offers 12 fully isolated channels for sensing 10–30 VDC or 10–25 VAC inputs. Each channel is individually isolated from all others. Supports latching, totalization, frequency, period, and pulse measurement. Includes per-channel LEDs, touchpad diagnostics, UL/ATEX compliance, made in the USA, and guaranteed for life.
Specifications
- Channels: 12 digital inputs, channel-to-channel isolated
- Input Voltage Ranges:
- DC: 10–30 VDC
- AC: 10–25 VAC
- Input Functions:
- On/off state
- On/off latching
- On/off totalization
- Frequency measurement
- Period measurement
- Pulse measurement
- Channel-to-Logic Isolation: 3,000 V
- Indicators:
- LED on module cover (status)
- LED per channel (input state)
- Touchpad: Displays module info on groov EPIC processor
- Operating Temperature: -20 to 70 °C
- Certifications: UL Hazardous Locations, ATEX, CE, UKCA compliant
- Build: Made in the USA, Guaranteed for life
- Compatibility: For use with groov EPIC processors (GRV-EPIC-PR1, PR2)
