GRV-ITMI-8

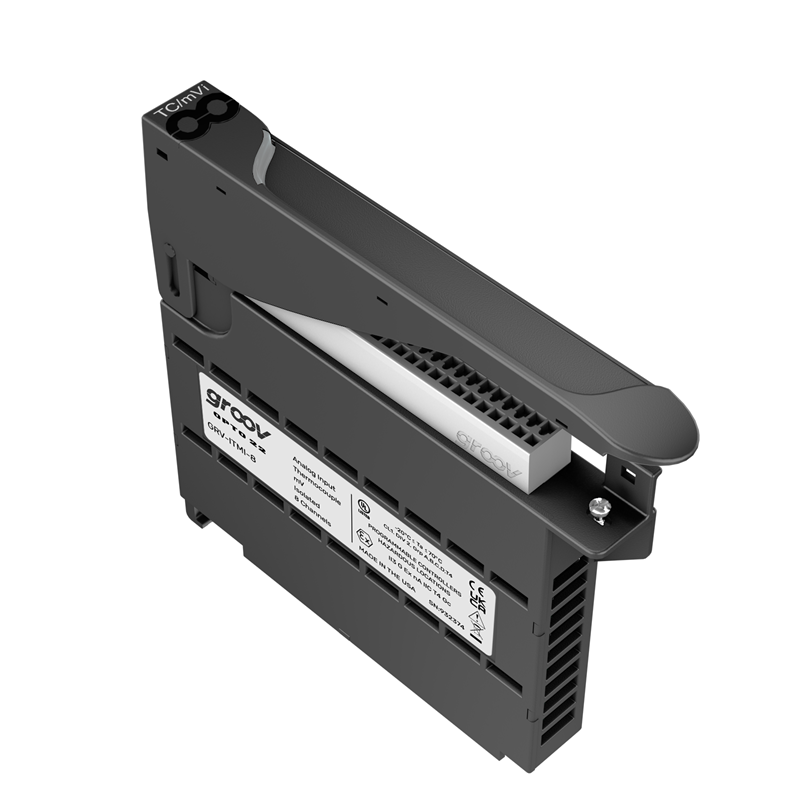

Thermocouple/millivolt input module, 8 channels, isolated
$0.00 ex. GST
The GRV-ITMI-8 provides 8 individually isolated inputs for thermocouples or ±80 mV signals. Offers high-accuracy temperature measurement with 18-bit resolution, integrated cold junction compensation, and touchpad diagnostics. UL and ATEX approved, -20 to 70 °C rated, made in the USA, and backed by a lifetime guarantee.
Specifications
- Channels: 8 individually isolated inputs
- Input Types:
- Thermocouples: B, E, J, K, N, R, S, T
- Millivolt: ±80 mV
- Resolution: 18-bit
- Accuracy: ±0.05% of full scale typical
- Integrated Cold Junction Compensation: Yes
- Channel-to-Logic Isolation: 3,000 V
- Indicators:
- LED on module cover (status)
- LED per channel (activity)
- Touchpad: Triggers module info display on groov EPIC processor
- Operating Temperature: -20 to 70 °C
- Certifications: UL Hazardous Locations, ATEX compliant
- Build: Made in the USA, Guaranteed for life
- Compatibility: For use with groov EPIC processors (GRV-EPIC-PR1, PR2)
