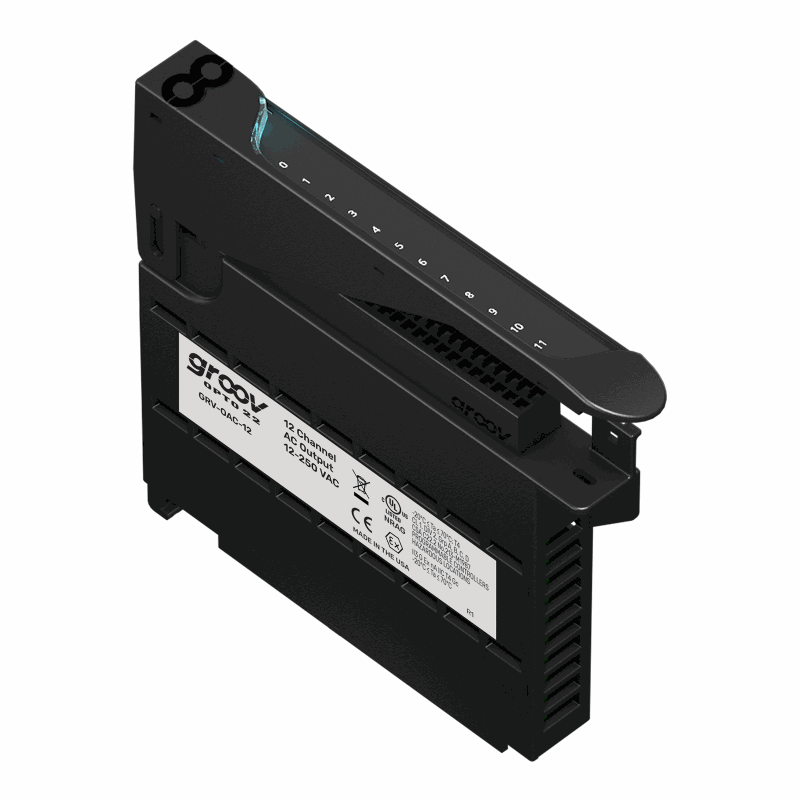

GRV-OAC-12
AC digital output module, 12 channels, 12–250 VAC
$0.00 ex. GST
The GRV-OAC-12 offers 12 AC digital output channels for switching 12–250 VAC at up to 3 A per channel. Includes zero-crossing switching, transient protection, status LEDs, and touchpad diagnostics. UL and ATEX approved, operates -20 to 70 °C, made in the USA, and guaranteed for life.
Specifcations
- Channels: 12 AC outputs (non-isolated, group-isolated)
- Voltage Range: 12–250 VAC
- Maximum Load Current: 3 A per channel
- Switching Type: Zero-voltage turn-on, zero-current turn-off
- Channel-to-Logic Isolation: 3,000 V (module-level isolation)
- Transient Protection: 300 V per channel
- Indicators:
- LED on module cover (status)
- LED per channel (output state)
- Touchpad: Triggers module info display on groov EPIC processor
- Operating Temperature: -20 to 70 °C
- Certifications: UL Hazardous Locations, ATEX compliant
- Build: Made in the USA, Guaranteed for life
- Compatibility: For use with groov EPIC processors (GRV-EPIC-PR1, PR2)
