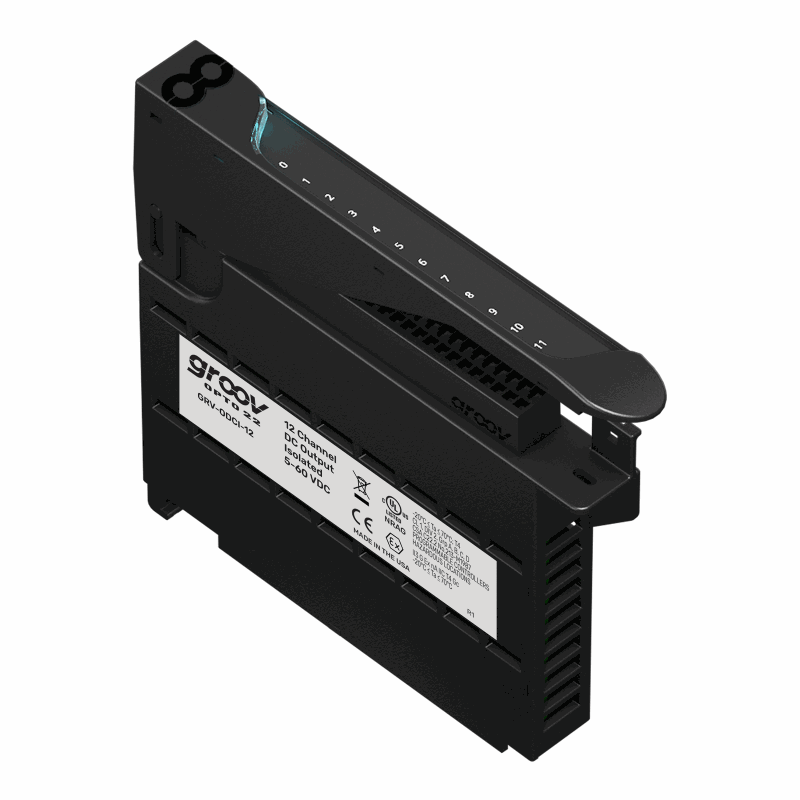

GRV-ODCI-12
DC digital output module, 12 channels, 5–60 VDC, isolated
$0.00 ex. GST
The GRV-ODCI-12 offers 12 individually isolated DC output channels, switching 5–60 VDC loads at up to 3 A per channel. Includes per-channel LEDs, module status LED, and touchpad for diagnostics. UL and ATEX certified, -20 to 70 °C rated, made in the USA, and guaranteed for life.
Specifications
- Channels: 12 individually isolated DC outputs
- Voltage Range: 5–60 VDC
- Maximum Load Current: 3 A per channel
- Switching Type: Sourcing (positive logic)
- Channel-to-Logic Isolation: 3,000 V
- Transient Protection: 60 V per channel
- Indicators:
- LED on module cover (status)
- LED per channel (output state)
- Touchpad: Triggers module info display on groov EPIC processor
- Operating Temperature: -20 to 70 °C
- Certifications: UL Hazardous Locations, ATEX compliant
- Build: Made in the USA, Guaranteed for life
- Compatibility: For use with groov EPIC processors (GRV-EPIC-PR1, PR2)
