Availability: In stock
Free standard shipping available

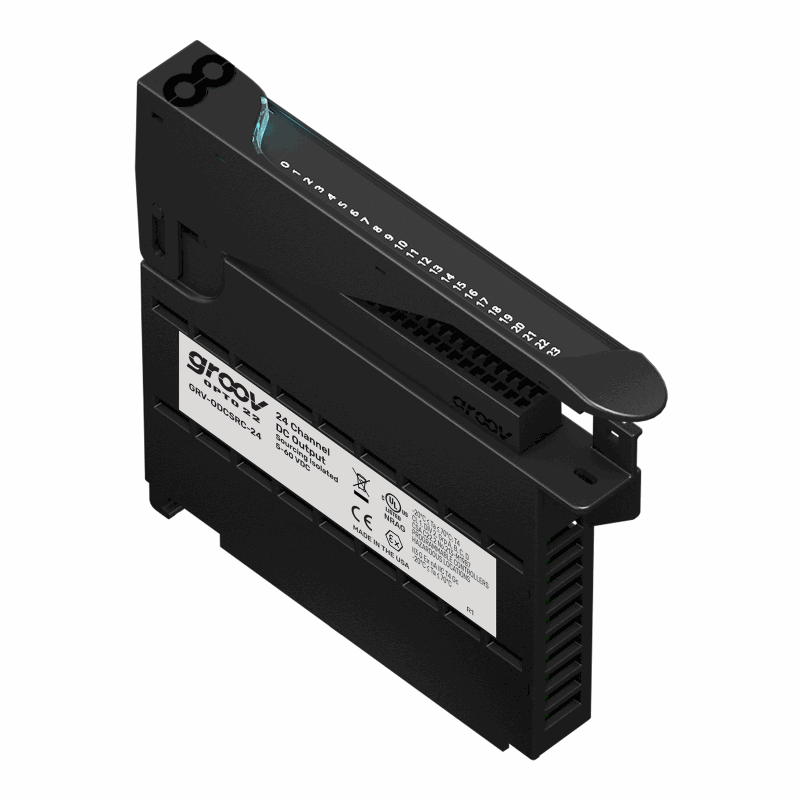

GRV-ODCSRC-24
DC digital output module, 24 channels, sourcing output
$0.00 ex. GST
The GRV-ODCSRC-24 provides 24 sourcing DC output channels, switching 5–60 VDC at up to 0.5 A per channel. Features per-channel LEDs, module status LED, and touchpad diagnostics. UL and ATEX certified, -20 to 70 °C rated, made in the USA, and backed by a lifetime guarantee.
Specifications
- Channels: 24 DC outputs (sourcing, non-isolated)
- Voltage Range: 5–60 VDC
- Maximum Load Current: 0.5 A per channel
- Switching Type: Sourcing (positive logic)
- Channel-to-Logic Isolation: Not individually isolated (group-isolated)
- Indicators:
- LED on module cover (status)
- LED per channel (output state)
- Touchpad: Triggers module info display on groov EPIC processor
- Operating Temperature: -20 to 70 °C
- Certifications: UL Hazardous Locations, ATEX compliant
- Build: Made in the USA, Guaranteed for life
- Compatibility: For use with groov EPIC processors (GRV-EPIC-PR1, PR2)
