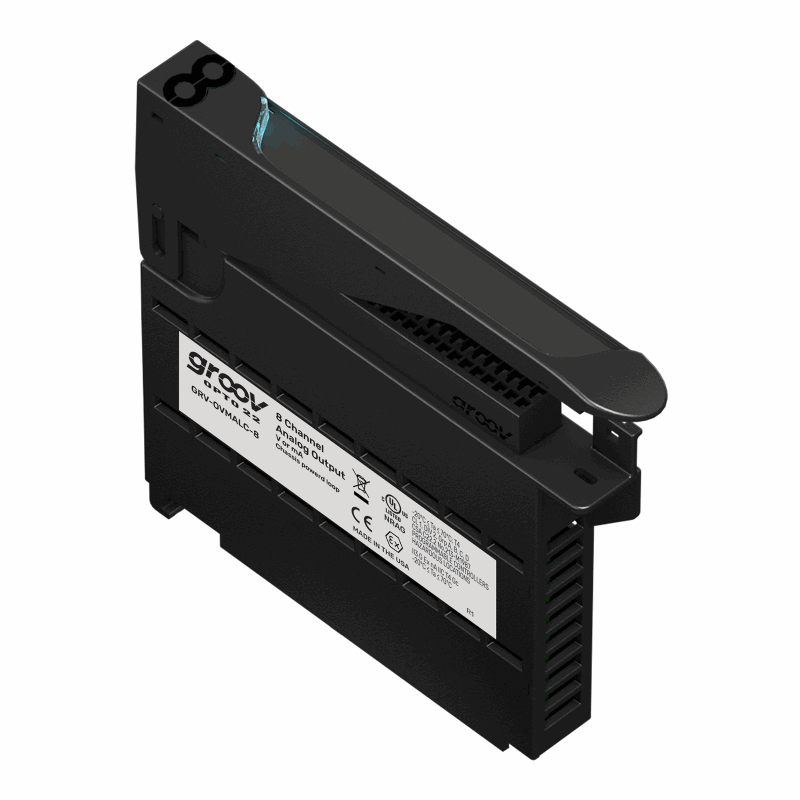

GRV-OVMALC-8
Analog output module, 8 channels, voltage or current, loop-powered
$0.00 ex. GST
The GRV-OVMALC-8 provides 8 individually isolated analog output channels with selectable voltage or current ranges. Outputs include ±10 VDC, 0–10 VDC, and 4–20 mA. Each range offers 4096 counts (12-bit resolution). Includes status LEDs, touchpad diagnostics, wide temperature rating, UL/ATEX compliance, and is guaranteed for life.
Specifications
- Channels: 8 analog outputs, individually isolated
- Output Ranges (Software Selectable):
- Voltage: 0–5 VDC, 0–10 VDC, ±5 VDC, ±10 VDC
- Current: 0–20 mA, 4–20 mA, 0–22 mA
- Resolution: 12-bit (4096 counts per range)
- Accuracy: ±0.1% of full scale typical
- Channel-to-Logic Isolation: 3,000 V
- Indicators:
- LED on module cover (status)
- LED per channel (output activity)
- Touchpad: Triggers module info display on groov EPIC processor
- Operating Temperature: -20 to 70 °C
- Certifications: UL Hazardous Locations, ATEX compliant
- Build: Made in the USA, Guaranteed for life
- Compatibility: For use with groov EPIC processors (GRV-EPIC-PR1, PR2)
