Availability: In stock
Free standard shipping available
GRV-EPIC-PSAC

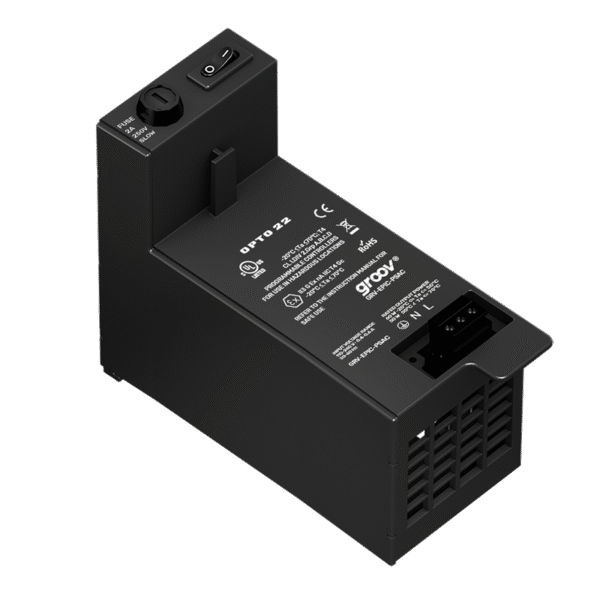

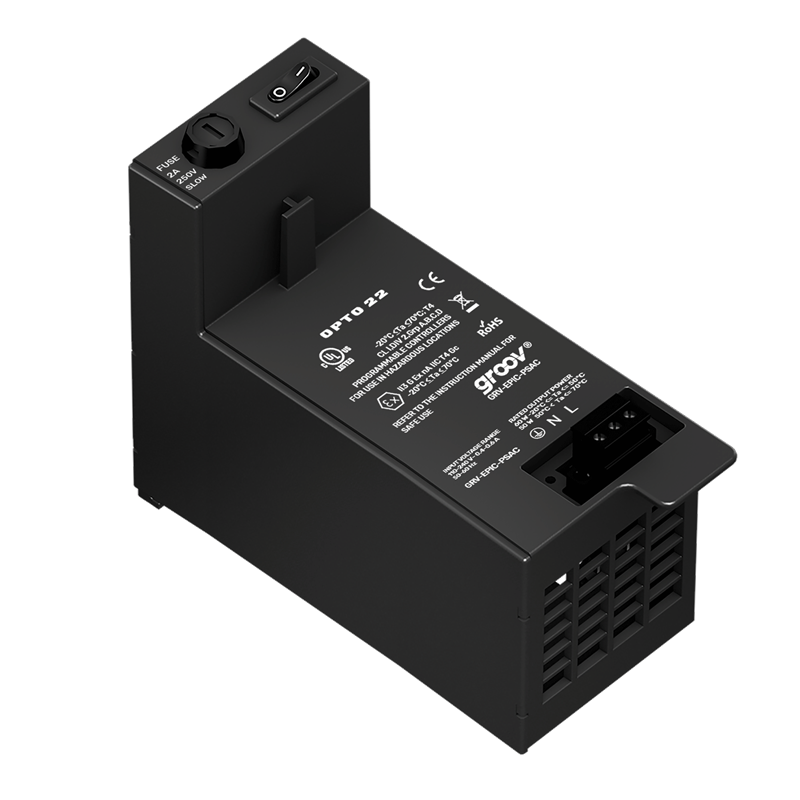

groov EPIC power supply, 100-264 VAC
$368.00 ex. GST
The GRV-EPIC-PSAC is a robust AC power supply for groov EPIC® systems, converting 100–250 VAC to isolated 5 VDC power. Powers the processor and I/O modules via direct chassis connection. Built in the USA, industrial-grade, fanless, and backed by a lifetime guarantee.
Specifications
- Input Voltage: 100–250 VAC
- Input Frequency: 47–63 Hz
- Output Voltage: 5.0 VDC
- Output Current: Up to 4 A
- Power Output: 20 W max (5 VDC @ 4 A)
- Isolation: 3,000 V between input and output
- Mounting: Direct to groov EPIC chassis
- Cooling: Passive (fanless)
- Operating Temperature: -20 to 70 °C
- Dimensions (HxWxD): 119.4 mm x 25.4 mm x 75.7 mm
- Weight: Approx. 0.25 kg
- Certifications: UL/cUL, ATEX, CE, UKCA compliant
- Build: Made in the USA, Guaranteed for life
- Use With: All groov EPIC chassis and processors (GRV-EPIC-PR1, PR2)
