Availability: In stock
Free standard shipping available
GRV-EPIC-PSDC

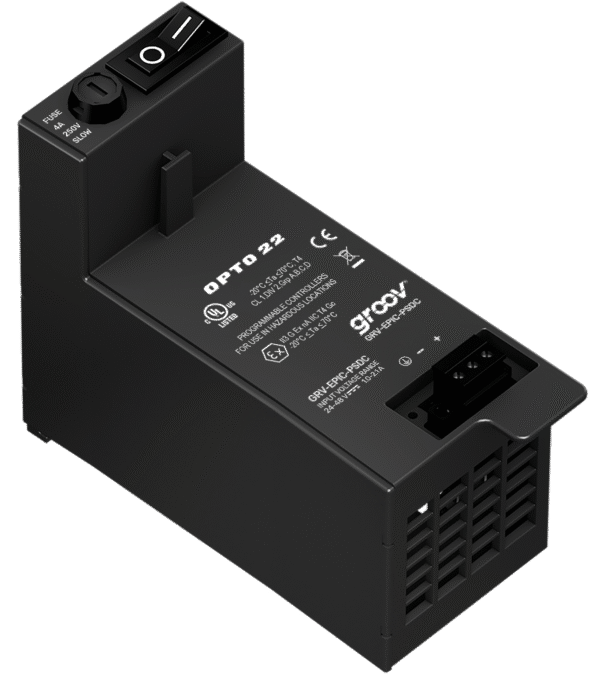

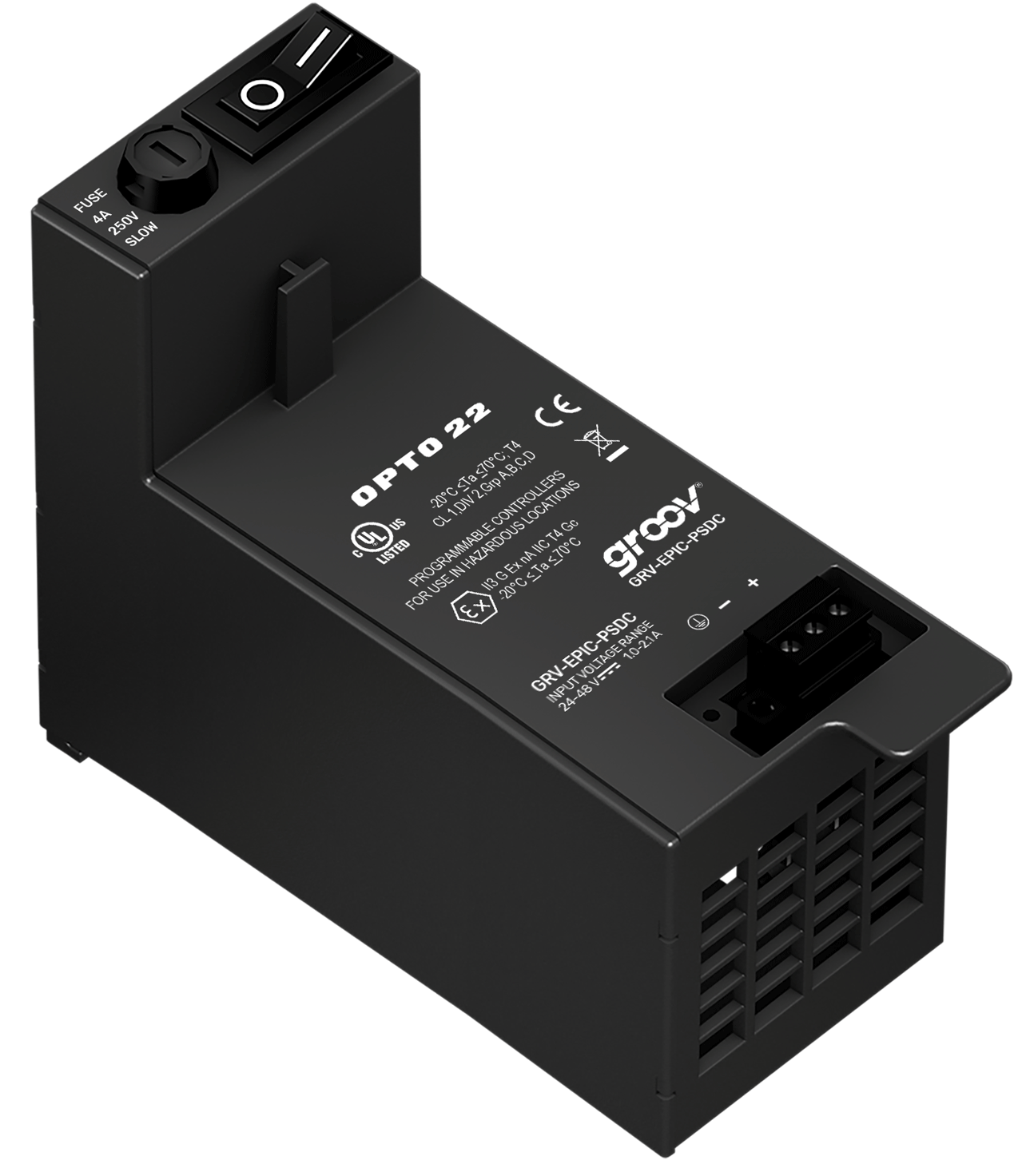

groov EPIC power converter, 22-50 VDC input
$552.00 ex. GST
The GRV-EPIC-PSDC is a compact, reliable DC power supply for groov EPIC® systems, delivering isolated 5 VDC power to the processor and I/O modules. Mounts directly to a groov EPIC chassis. Built in the USA, rugged, and backed by a lifetime guarantee.
Specifications
- Input Voltage: 10–32 VDC
- Output Voltage: 5.0 VDC
- Output Current: Up to 4 A
- Power Output: 20 W max (5 VDC @ 4 A)
- Isolation: 3,000 V between input and output
- Mounting: Direct to groov EPIC chassis
- Cooling: Passive (fanless)
- Operating Temperature: -20 to 70 °C
- Dimensions (HxWxD): 119.4 mm x 25.4 mm x 75.7 mm
- Weight: Approx. 0.2 kg
- Certifications: UL/cUL, ATEX, CE, UKCA compliant
- Build: Made in the USA, Guaranteed for life
- Use With: All groov EPIC chassis and processors (GRV-EPIC-PR1, PR2)
